Item specifics
  • Sound Track: Single
  • Support Apt-x: No
  • WIFI Standard: None
  • Interface: HDMI
  • Content: Audio&Video
  • Brand Name: USBONLINE
  • Feature: None
  • Wireless Type: NFC
  • Support AAC: No
  • Package: Yes
  • Model Number: HDMI0056
  • Bluetooth Standard: None
  • Application: Multimedia
  • Gender: Female-Female
  • Package: Carton Box
  • Connector Color : Gold
  • Connector A : RCA
  • Connector B: RCA
  • Type: Coaxial
  • Connector Type : BNC
  • Shielding: Non-Shielded
Product Description

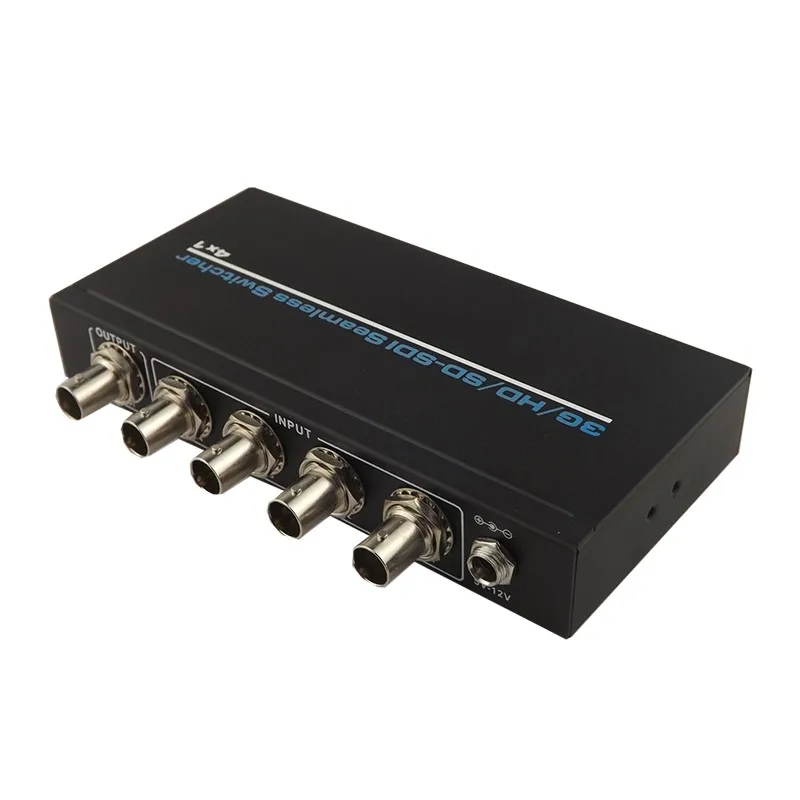

3G/HD/SD_SDI HD display 1080p Seamless switcher 4 x 1 converter serial digital video signal seamless switcher

 HDV-S41SL user manual V1.2.doc

User manual




  Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference.

1. Introduction

SDI switcher is a high-performance with seamless switching, it can be four input SDI/HD-SDI/3G-SDI serial digital video signal source, after scaling into HD-SDI or 3G-SDI serial digital video signal seamless switch to the on HD display device. This product built-in automatic identification and compatible with SD-SDI, HD-SDI, 3G-SDI all format of SDI signal. It is the support 2.97Gbps bandwidth, and supports lossless transmission over long distances.

2. Features

l 4 SDI input signal switch to 1 SDI sink devices.

l Support seamless switching

l Supports inputs SD-SDI(270Mb/s), HD-SDI(1.485Gb/s), 3G-SDI(2.97Gb/s) video format.

l Built-in cable equilibrium, clock recovery and drive.

l Supports outputs resolutions: 1080p@60Hz (3G) and 720p@60Hz (HD).

l Supports signal input and output distances of up to 300m for SD signals, 200m for HD signals and 100m for 3G signals.

l Supports remote control and on-panel control

l Supports 5-12V wide voltage input.


3. Package

l 4x1SDI Seamless Switcher-------------------------------------------------------------- 1PCS

l 5V 1A DC Power Supply adapter ------------------------------------------------------ 1PCS

l IR Remote control------------------------------------------------------------------------- 1PCS

l Operation Manual ------------------------------------------------------------------------ 1PCS


4. Specifications

l Frequency Bandwidth        3Gbps

l SDI Input Ports        4 x BNC Female input port

l SDI Output Ports       1 x BNC Female output ports

l Power Supply       DC 5V 1A

l ESD Protection Human Body Model:    ± 8kV (air-gap discharge)

± 4kV (contact discharge)

l Dimensions (mm)   70(W) X 145 (D) X 25 (H)

l Weight    350g

l Operating Temperature       0°C ~ 40°C / 32°F ~ 104°F

l Storage Temperature               -20°C ~ 60°C / -4°F ~ 140°F

l Relative Humidity           20 ~ 90% RH (Non-condensing)

l Power Consumption (Max)        4W

5. Operation controls and Functions

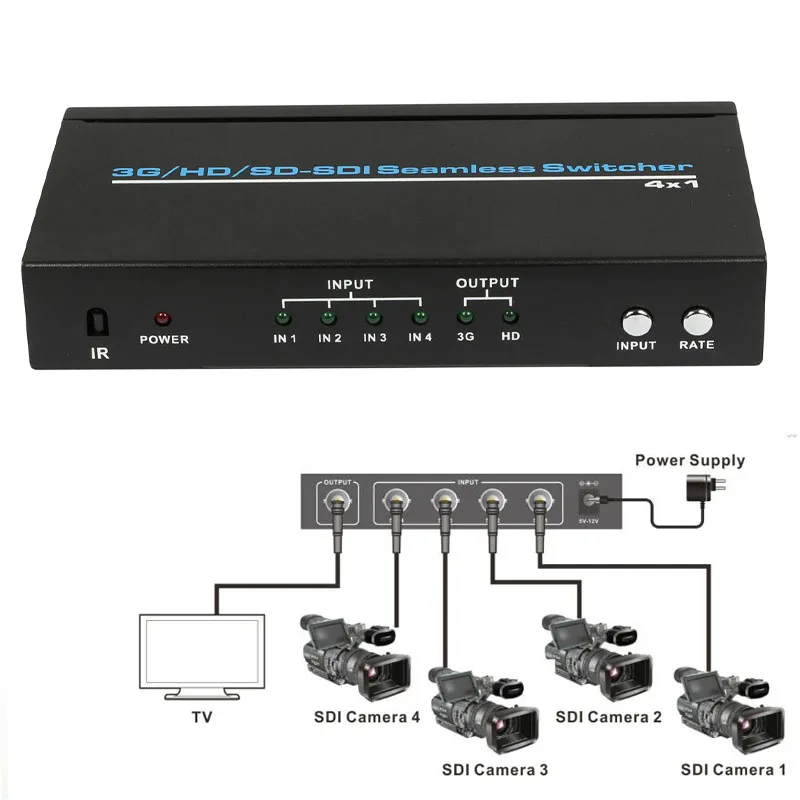

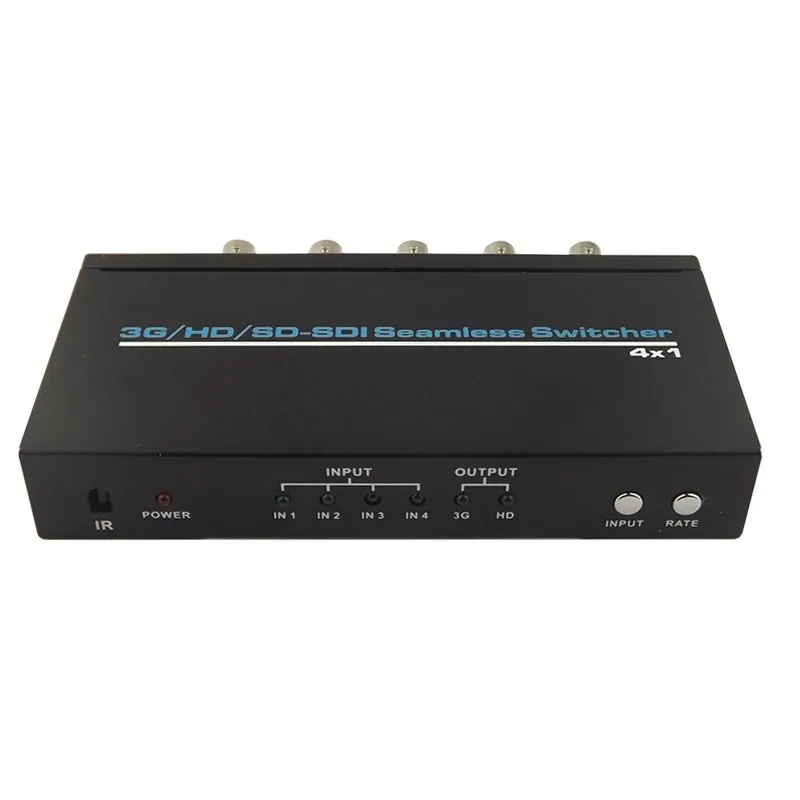

Front Panel

1) IR: IR Receiver window (accepts the remote control signal of this device only).

2) POWER LED: This red LED illuminate when the device is connected with power supply.

3) INPUT LED: These inputs status indicating lamp

(1).Illuminate: SDI input signal stability.

(2).Flashing: Input port is selected, but there is no input signal or the input signal is not stable

4) OUTPUT LED: Output rate status indicating lamp.

5) INPUT SELECT: Press the INPUT button to select an input from the 4 input sources.

6) RATE SELECT: Press the RATE button will change output rate(3G or HD).

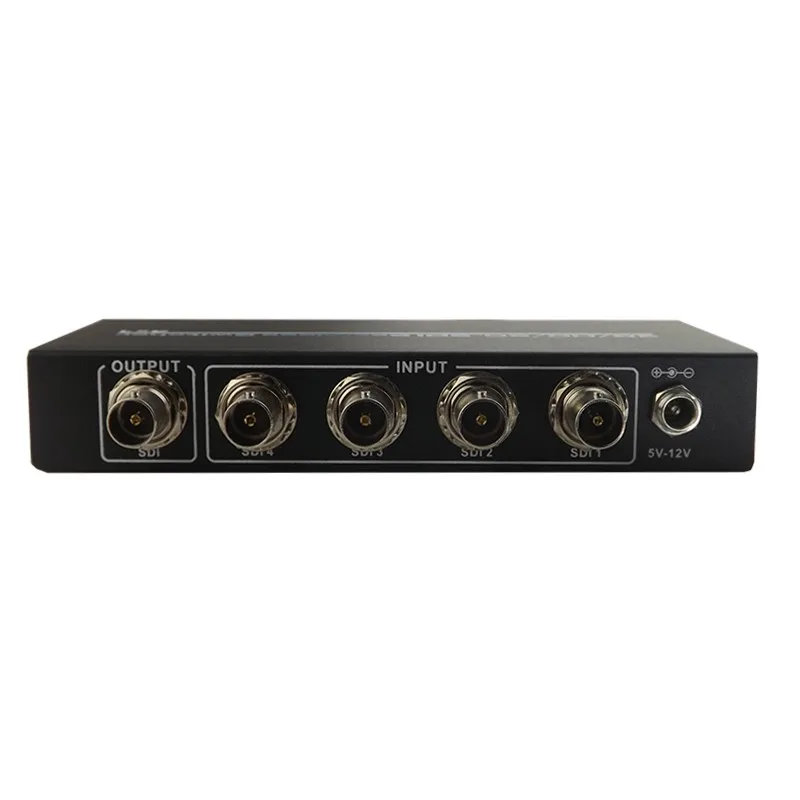

Rear Panel

1) SDI OUTPUT: This slot is where you connect the SDI displays or monitors with coaxial cable (RG6).

2) SDI INPUT: These slots are where you connect the SDI source output from SDI Camera.

3) DC 5V-12V: Plug the 5V or 12V DC power supply into the unit and connect the adapter to AC wall outlet.

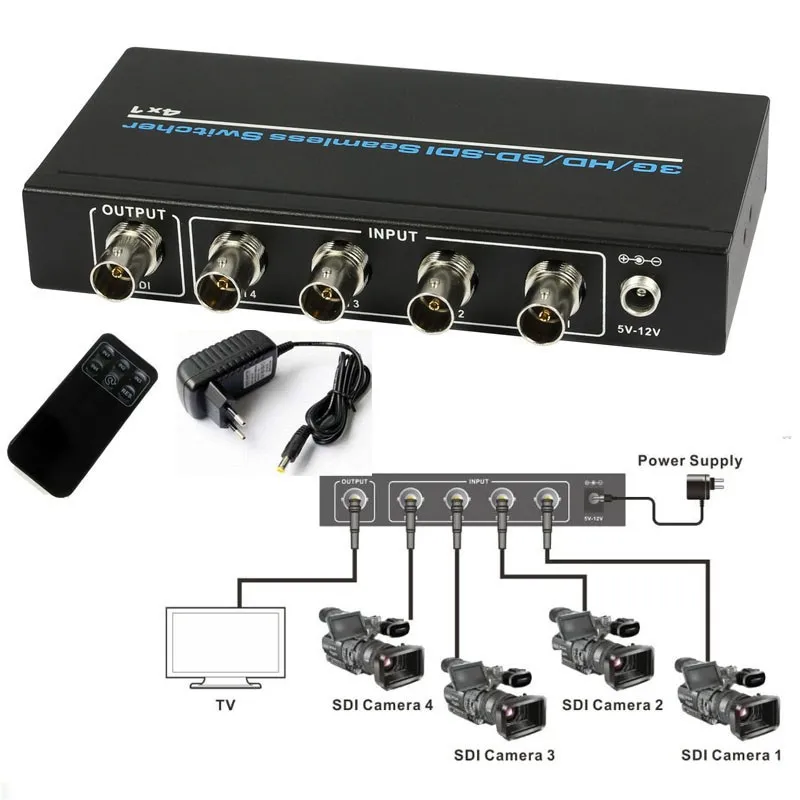

6. Application Example


Packaging Details
  • Unit Type: piece
  • Package Weight: 0.55kg (1.21lb.)
  • Package Size: 15cm x 7cm x 3cm (5.91in x 2.76in x 1.18in)
